Infiniti: 02-08 G35 Sedan, 03-07 G35 Coupe RWD (With Ball Lower Mounts) Full Air Suspension Kit - Air Lift Performance

FULL AIR SUSPENSION KIT

Air Lift Performance's Infiniti air suspension kits are the ultimate suspension choice for your ride.

The Infiniti G35 air suspension kit is fully engineered to properly fit your vehicle, provide unmatched static drop, and deliver ride and handling capability that exceeds factory suspensions. No other lowering suspension provides a more versatile package for daily use.

Air Lift Performance's Infiniti G35 air ride kits are geared towards maximizing your vehicle’s suspension: lowest drop, best ride, lowest weight, most adjustability, and incredible handling. All proven on racetracks and back roads around the world.

Get your Infiniti G35 on air ride and get down!

KIT OPTIONS

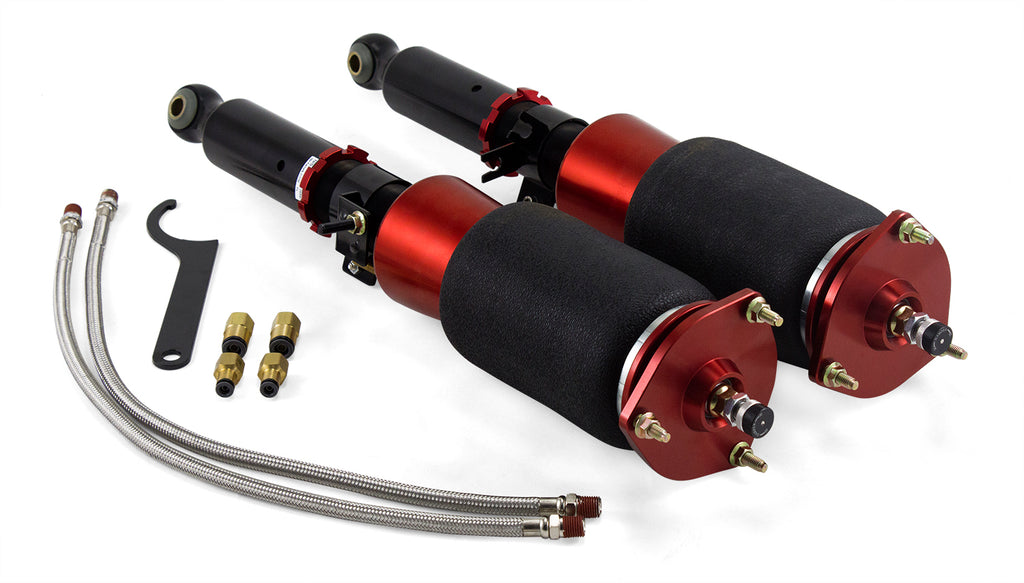

Performance Front Kit:

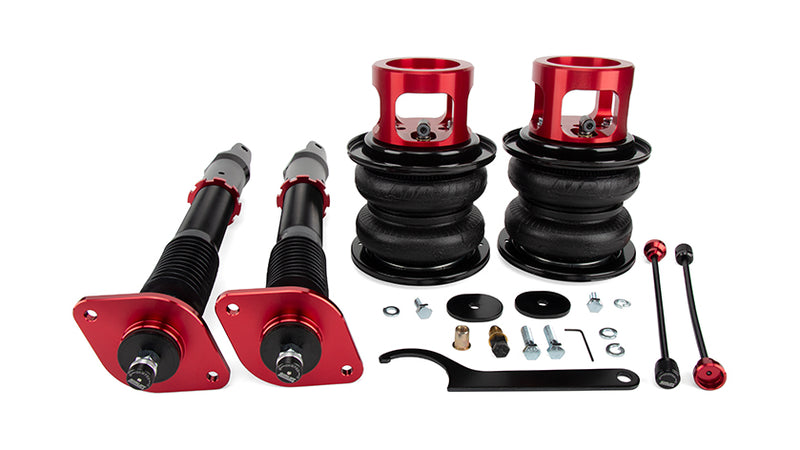

Performance Rear Kit:

Performance Series kits feature lightweight threaded bodied monotube shocks/struts with 30-level adjustable damping. Adjustable camber plates are integrated into most struts for perfect alignment or wheel fitment and are engineered with high quality spherical bearing upper mounts**, providing instant damper response and precise steering feel.

**All struts feature spherical bearing upper mounts while shocks may or may not, depending on application.

Front Kit Modifications Required: Indenting inside of front shock tower for air spring clearance.

Rear Kit Modifications Required: Requires cutting 15mm off upper coil spring locator.

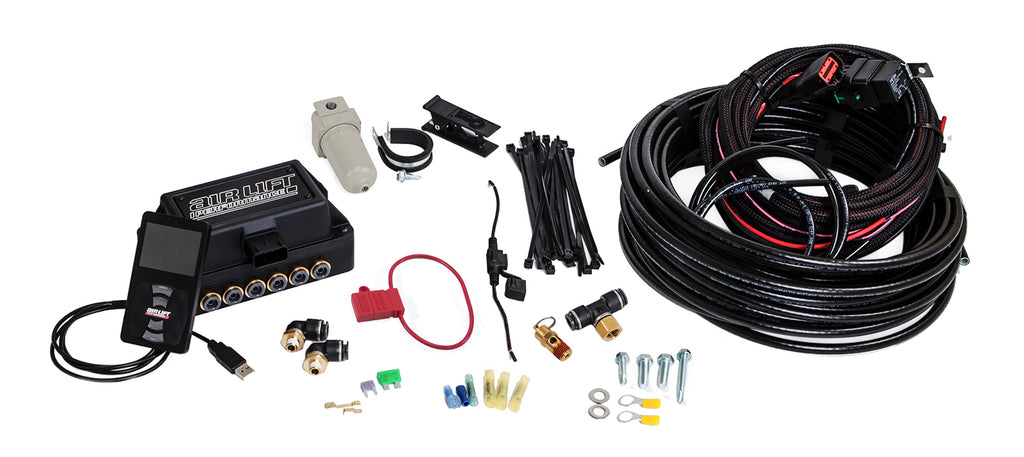

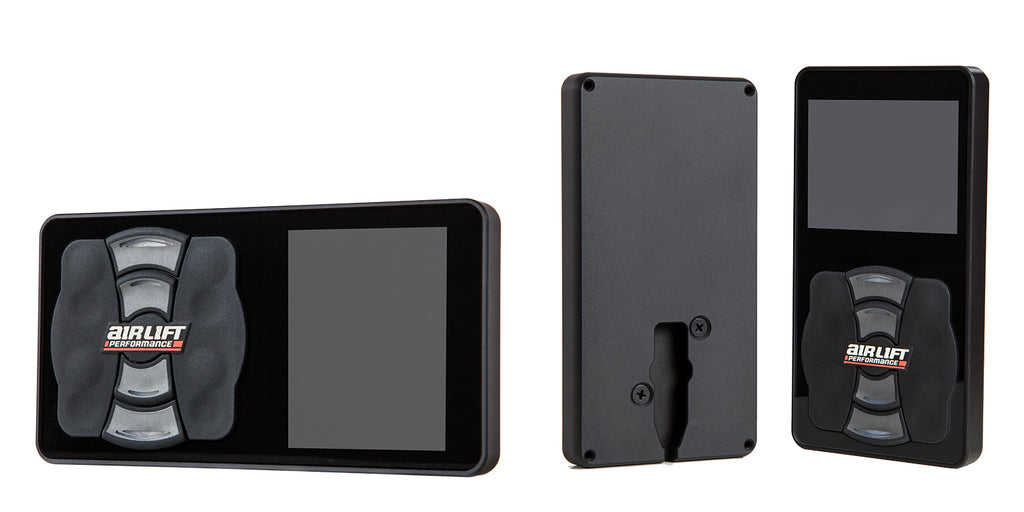

Management System: 3P or 3H

Both systems have 5 different presets for height, they also allow you to manually adjust your height. 3P is a pressure based system whilst the 3H is a height and pressure system that comes with height sensors that once installed allows the system to automatically adapt to vehicle load. A mobile app is available which allows you to control and get the status of your system on most Android and IOS phones.

Airline Size: 1/4" or 3/8"

Typically the 1/4" air line is recommended, it provides for a more accurate height adjustment and a slower smoother ride adjustment for occupants. The 1/4" air line is also smaller, more flexible and easier to install than the 3/8" air line.

Air Tank: Choice of aluminum light weight tanks

Varying capacities and ports as well as a choice of 2 finishes to select from. Alternatively upgrade to a FLO billet tank with 3 different capacities available.

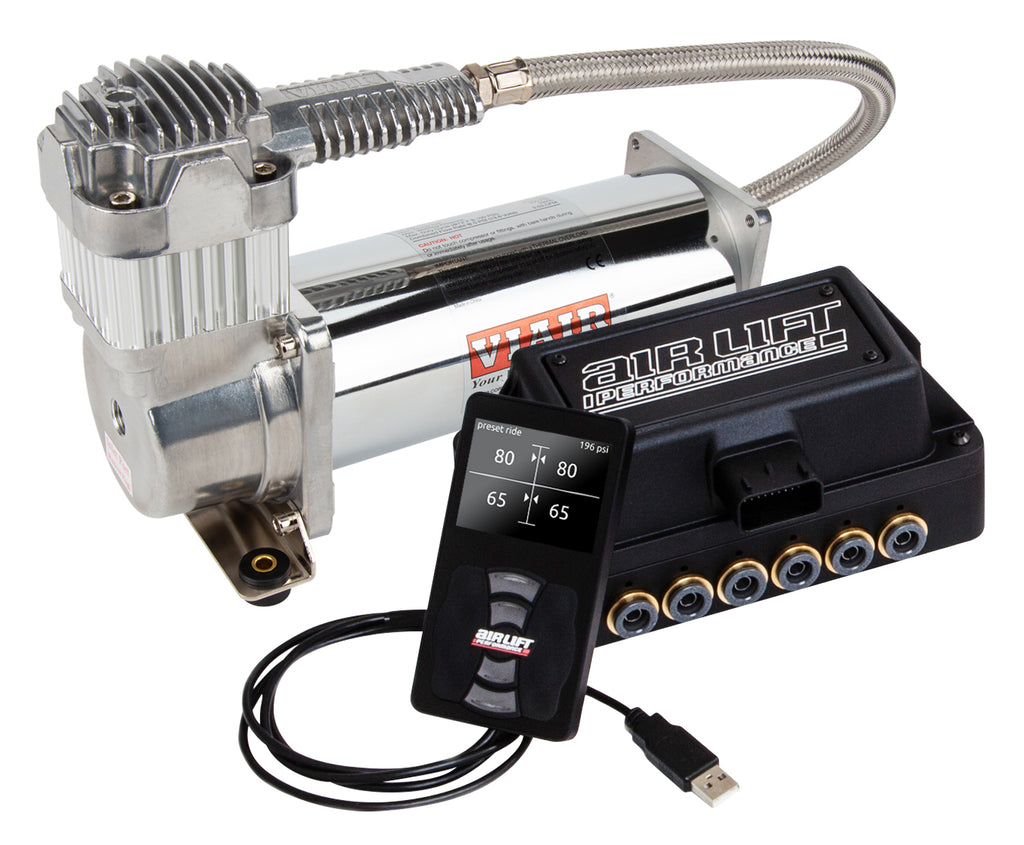

VIAIR Compressor: Single, dual or upgrade available

The 444C has proven to be one of the most popular and reliable compressors available today. It is rated for 200 PSI and has a 100% duty cycle. Available as a single or dual option.

Power Kit:

2nd harness will be required if you order dual compressors for your management system.

Compressor Check Valve:

Upgrade to a sturdy SMC check valve, for longer reliability than VIAIR's installed valve.

Compressor Isolator Kit:

This kit assists in helping to dampen the sound of your compressor as the spring loaded rubber mounts reduce some of the vibration when the compressors are running.

MODEL FITMENT

• 2002-2006 Infiniti G35 Sedan
• 2007-2008 Infiniti G35 Sedan - Call to confirm
• 2003-2007 Infiniti G35 Coupe

NOTE

• Fits RWD models only
• Fits models with fork lower mounts only
• Will not fit AWD models
